Ф45×27cm· 5 kW ·99.9℃· wave±0.2℃ Lift distance 18cm·(Equip to 20L rotary evaporator)
Symbol Instruction: / - None, ● - Equipped, ○ - Optional ( * - Only available when ordering of product, not for separate sale)
Note: Some specifications of relevant or customized models have some differences from that of standard model, for details, please consult with us.
Temp. Sensor CU50
20L Rotary Evaporator with 20L/F95 evaporating flask, 10L receiving flask with PTFE discharging valve.

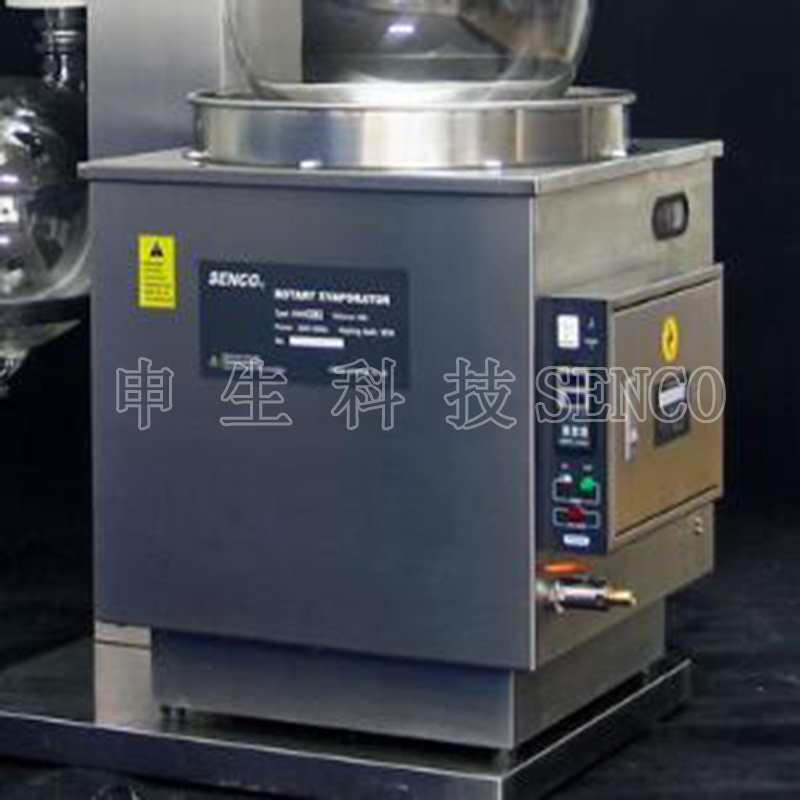

Lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control. Digital rotation display. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.
Frequency conversion rotation, speed 3-110rpm. Vacuum meter equipped.
20L Rotary Evaporator with complete flange joint, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.

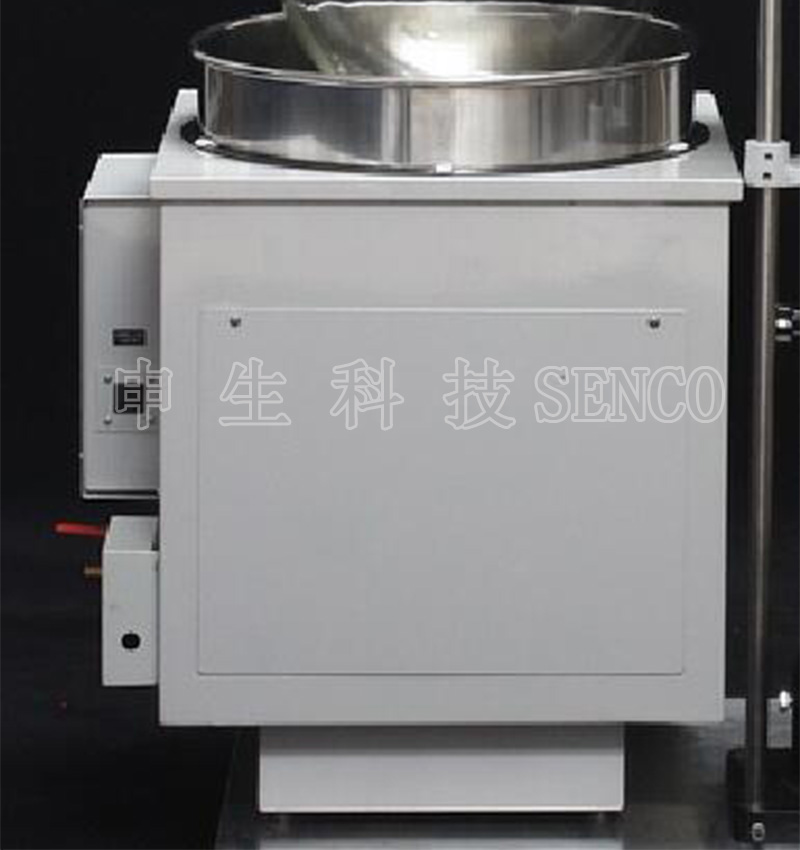

PTFE charging & discharging valve, Patent technology on tandem type continuous receiving. Manual lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.
Digital rotation display. Frequency conversion rotation, speed 3-110rpm. Vacuum meter and vapor temperature measure port equipped.
Ф26×15cm· 1.4kW ·180℃℃·Lift distance 12cm, temp wave ±0.2℃
