2.6kPa, 2×10L/min, vacuum pressure adjustable, sus pump head, resist certain corrosion (fit for 1L-10L equipments)
SHB-3 circulating water vacuum pump is a new kind of multi-use vacuum pump designed on the basis of the principle of generating negative pressure by using the jet flow and using the recycled water as the working fluid, which can provide the vacuum conditions for chemical experiments and reaction equipment.
The user instructions
When selecting the vacuum pump, the correct selection of the vacuum pump directly affects the service life of the vacuum pump and the benefit of the enterprise.
In practice, it is shown that in the same working condition, whether the selection is correct or not, the service life of the vacuum pump is several times, tens or even hundreds of times. Therefore, we are reminded that:
One、 whichever vacuum pump is chosen, can refer to the sample.Professional technical staff can also be recommended to obtain satisfactory results.
Two、 If we are required to assist in the selection, please provide the following information:
1. Vacuum degree of work;
2. Pumping time when working vacuum degree;
3. The volume of vacuum system (or vacuum tank);
4. The name, temperature and concentration of the pumped gas medium;
5. Flammable, explosive and poisonous gases and their ph;
6. Whether the gas discharged by the pump needs to be recycled;
7. The shaft seal of the vacuum pump, and the special requirements of the motor and other parts.

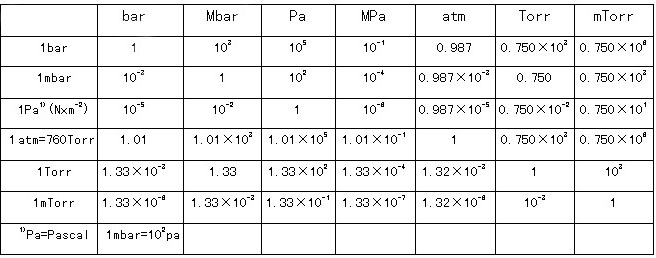

Pressure unit conversion table
Symbol Instruction: / - None, ● - Equipped, ○ - Optional ( * - Only available when ordering of product, not for separate sale)
Note: Some specifications of relevant or customized models have some differences from that of standard model, for details, please consult with us.
Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask. Bath Temp.: 99°C digital display Features: - Economic model with diagonal water cooling and bath cap; - Easy flask taking-off design for both evaporating and receiving flask; - Can perform distilling & reflux. - 1L receiving flask with 35 spherical joint. Diagonal condenser, Lifting Bath 99C.
Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask. Bath Temp.: 99°C digital display Features: - Economic model with diagonal water cooling and bath cap; - Easy flask taking-off design for both evaporating and receiving flask; - Can perform distilling function.reflux is optional function.
- 1L receiving flask with 35 spherical joint. Vertical condenser, Manual lifting Bath 99°C. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Rotation 10-180rpm.
Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask. Bath Temp.: 99°C digital display Features: - Economic model with diagonal water cooling and bath cap; - Easy flask taking-off design for both evaporating and receiving flask; - Can perform distilling ; reflux is optional device; - PTFE bottom discharge vavle.
Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask. Bath Temp.: 99°C digital display Features:
- Equipped with vacuum gauge, digital display of bath temp. and rotation speed, bath cap;
- 1L receiving flask with S35 spherical joint. Vertical condenser, Manual lifting bath 99°C with +/-0.2°C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Digital rotation display. Rotation speed 4-200rpm. Vacuum release valve and Vacuum meter are equipped.
Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask. Bath Temp.: 180°C digital display Features:
- 1L receiving flask with S35 spherical joint. Vertical condenser, Manual lifting bath 180°C with +/-0.2°C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Digital rotation display. Rotation speed 4-200rpm. Vacuum release valve and Vacuum meter are equipped;
- Can not be equipped with pot lid.
3L evaporating flask. 2L receiving flask with ball joint. Lifting bath 180°C with +/-0.2C intelligent temp. control. Digital rotation display. Rotation speed 4-180rpm. Vacuum meter equipped.
Optional part : F50-->29 transitional joint available for choose.
5L·evaporating flask, 3L receiving flask with PTFE discharging valve. Manual lifting bath, 99°C with +/-0.2°C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Digital rotation display. Rotation speed 2-90rpm. Strengthen motor head to perform heavy load. Vacuum meter equipped.
Optional part: 0.1~3L evaporating flasks.
5L·evaporating flask, 3L receiving flask with PTFE discharging valve. Manual lifting bath, 180°C with +/-0.2C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Digital rotation display. Rotation speed 2-90rpm. Strengthen motor head to perform heavy load. Vacuum meter equipped.
Optional part: 0.1~3L evaporating flask.
5L evaporating flask, 3L receiving flask with PTFE discharging valve. Manual lifting bath, 99°C with +/-0.2°C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Digital rotation display. Rotation speed 2-90rpm. Strengthen motor head to perform heavy load. Vacuum meter, Vapor temperature thermometer & Reflux cork equipped.
5L·evaporating flask, 3L receiving flask with PTFE discharging valve. Manual lifting bath, 180°C with +/-0.2C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance. Digital rotation display. Rotation speed 2-90rpm. Strengthen motor head to perform heavy load. Vacuum meter, Vapor temperature thermometer & Reflux cork equipped.
10L Rotary Evaporator with 10L/F95 evaporating flask, 5L receiving flask with PTFE discharging valve.
Manal lifting bath, 3kw, 99℃ with +/-0.2℃ intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.
Digital rotation display. Frequency conversion rotation, speed 3-110rpm. Vacuum meter equipped.
Manal lifting bath, 3kw, 180℃ with +/-0.2C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.
2L, 5-neck vacuum reaction flask. Bath 180℃ with +/-0.2℃ intelligent temp. control. Accessories for Reflux, Drip, Temperature measure and Charging included.
5L, 5-neck vacuum reaction flask. Frequency conversional stir. Bath 180℃ with +/-0.2℃ intelligent temp. control. Accessories for Reflux, Drip, Temperature measure and Charging inluded.
250ml, 5+1 neck jacketed reaction flask with non-dead-angle discharge valve, Tangent style flange jacket inlet/outlet, Drip, Reflux, Thermometer and Charging accessories included.
500ml, 5+1 neck jacketed reaction flask with non-dead-angle discharge valve, Tangent style flange jacket inlet/outlet, Drip, Reflux, Thermometer and Charging accessories included.
1000ml, 5+1 neck jacketed reaction flask with non-dead-angle discharge valve, Tangent style flange jacket inlet/outlet, Drip, Reflux, Thermometer and Charging accessories included.
2000ml, 5 neck reaction head, downward open jacketed reaction body with non-dead-angle discharge valve. Tangent style flange jacked inlet/outlet, glass accessories included. Can attach different capacity flask under same reaction head.
6.7×10-2Pa ,120L/min. Not for pump steam or corrosive gas. Product dealt by SENCO
800Pa·16L/min·, with gas ballast valve, Anti-corrosive. Product dealt by SENCO.
700Pa·38L/min, with gas ballast valve, Anti-corrosive. Product dealt by SENCO.
800Pa·38L/min·German Brand·Dealt by Senco
