Position：Home > Products > Complementary Products > Vacuum Pump > 2XZ-2

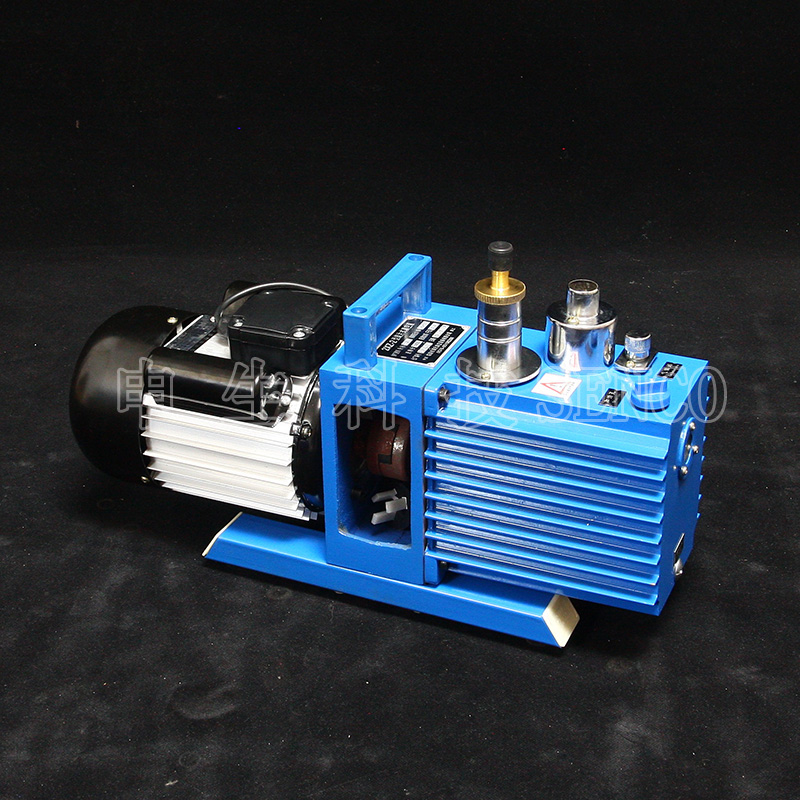

Vane pump  (2XZ-2)
diaphragm pump,
Pdt. Code：2XZ-2

6.7×10-2Pa ,120L/min.   Not for pump steam or corrosive gas. Product dealt by SENCO

  • Pdt. Name/Model: Vane pump(2XZ-2)
  • Pdt. Code: 2XZ-2
  • Pdt. Features: diaphragm pump,

2XZ series Vane Pump
The series pump is used to remove gas from the sealed container.
It can be used separately, and can also be used for other kinds of pumps.
It can be used in electric vacuum container manufacturing, vacuum welding, printing, photoengraving, food packaging, vacuum blister, refrigeration equipment maintenance and instrument, instrument equipment and laboratory etc.
Widely used in aerospace, semiconductor, coating, food packaging, drying, refrigeration, scientific research, medical, electronics, chemical, pharmaceutical and other specialized facilities and the laboratories of universities and colleges.

Structural characteristics of Vane Vacuum Pump
1. Small size, light weight and low noise;
2. With gas ballast valve, a small amount of water vapor can be removed;
3. Automatic anti-return oil dual insurance device;
4. Small diameter 2XZ- 2,2XZ-4 vacuum pump specially equipped with vacuum drying oven, freeze-drying machine, printing machinery;


The user instructions

When selecting the vacuum pump, the correct selection of the vacuum pump directly affects the service life of the vacuum pump and the benefit of the enterprise.

In practice, it is shown that in the same working condition, whether the selection is correct or not, the service life of the vacuum pump is several times, tens or even hundreds of times. Therefore, we are reminded that:

One、 whichever vacuum pump is chosen, can refer to the sample.Professional technical staff can also be recommended to obtain satisfactory results.

Two、 If we are required to assist in the selection, please provide the following information:

1. Vacuum degree of work;

2. Pumping time when working vacuum degree;

3. The volume of vacuum system (or vacuum tank);

4. The name, temperature and concentration of the pumped gas medium;

5. Flammable, explosive and poisonous gases and their ph;

6. Whether the gas discharged by the pump needs to be recycled;

7. The shaft seal of the vacuum pump, and the special requirements of the motor and other parts.



Pressure unit conversion table



SPECIFICATIONS

1 Fit for Rotary Evaporator 20-50L
2 Ultimate Vacuum Rate 6.7 x 10-2Pa
3 Max Pumping Speed 120L/min
4 Rated Power 370W 220V
5 Dimensions (cm) 52x17x28H
6 Features high vauum rate, fast pumping speed, not for pumping of corrosive gas or quantity of steam

CONFIGURATIONS

Symbol Instruction: / - None,  ● - Equipped,  ○ - Optional ( * - Only available when ordering of product, not for separate sale)

Note: Some specifications of relevant or customized models have some differences from that of standard model, for details, please consult with us.

  • Rotary Evaporator(R213B)

    Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask.
    Bath Temp.: 99°C digital display
    Features:
    - Economic model with diagonal water cooling and bath cap;
    - Easy flask taking-off design for both evaporating and receiving flask;
    - Can perform distilling & reflux.
    -     1L receiving flask with 35 spherical joint.  Diagonal condenser, Lifting Bath 99C.

  • Roator Evaporator(R214B)

    Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask.
    Bath Temp.: 99°C digital display
    Features:
    - Economic model with diagonal water cooling and bath cap;
    - Easy flask taking-off design for both evaporating and receiving flask;
    - Can perform distilling function.reflux is optional function.

    - 1L receiving flask with 35 spherical joint.  Vertical condenser, Manual lifting Bath 99°C. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Rotation 10-180rpm.

  • Rotary Evaporator(R205B)

    Standard Configuration: 1L and 0.5L Evaporating Flask. Optional Capacity: 0.1~2L Evaporating Flask.
    Bath Temp.: 99°C digital display
    Features:
    - Economic model with diagonal water cooling and bath cap;
    - Easy flask taking-off design for both evaporating and receiving flask;
    - Can perform distilling ; reflux is optional device;
    - PTFE bottom discharge vavle.

  • Rotary Evaporator(R308D)

    3L evaporating flask.  2L receiving flask with ball joint.  Lifting bath 180°C with +/-0.2C intelligent temp. control.  Digital rotation display.  Rotation speed 4-180rpm. Vacuum meter equipped.

    Optional part : F50-->29 transitional joint available for choose.

  • Rotary Evaporator(R502B)

    5L·evaporating flask, 3L receiving flask with PTFE discharging valve.  Manual lifting bath, 99°C with +/-0.2°C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Digital rotation display.  Rotation speed 2-90rpm.  Strengthen motor head to perform heavy load.  Vacuum meter equipped.

    Optional part: 0.1~3L evaporating flasks.

  • Rotary Evaporator(R502D)

    5L·evaporating flask, 3L receiving flask with PTFE discharging valve.  Manual lifting bath, 180°C with +/-0.2C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Digital rotation display.  Rotation speed 2-90rpm.  Strengthen motor head to perform heavy load.  Vacuum meter equipped.



    Optional part: 0.1~3L evaporating flask.



  • Rotary Evaporator(R503B)

    5L evaporating flask, 3L receiving flask with PTFE discharging valve.  Manual lifting bath, 99°C with +/-0.2°C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Digital rotation display.  Rotation speed 2-90rpm.  Strengthen motor head to perform heavy load.  Vacuum meter, Vapor temperature thermometer & Reflux cork equipped.

    Optional part: 0.1~3L evaporating flasks.

  • Rotary Evaporator(R503D)

    5L·evaporating flask, 3L receiving flask with PTFE discharging valve.  Manual lifting bath, 180°C with +/-0.2C intelligent temp. control. Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Digital rotation display.  Rotation speed 2-90rpm.  Strengthen motor head to perform heavy load.  Vacuum meter, Vapor temperature thermometer & Reflux cork equipped.

    Optional part: 0.1~3L evaporating flask.

  • Rotary Evaporator(R1002D)

    10L Rotary Evaporator with 10L/F95 evaporating flask, 5L receiving flask with PTFE discharging valve.



    Manal lifting bath, 3kw, 180℃ with +/-0.2C intelligent temp. control.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter equipped.

  • Rotary Evaporator(R2005KB)

    20L Rotary Evaporator with complete flange joint, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.



    PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.  Manual lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2005KD)

    20L Rotary Evaporator with complete flange joint, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.  PTFE charging &  discharging valve,



    Patent technology on tandem type continuous receiving.  Manual lifting bath, 5kw, 180℃ with +/-0.2C intelligent temp. control.



    Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2006KB)

    Illustrations are for reference only.
    20L Rotary Evaporator with complete flange joint, no glass seizure risk.  SUS frame
    20L/F120 evaporating flask, 10L receiving flask.  PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.
    Electric Lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control.  Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2006KD)

    20L Rotary Evaporator with complete flange joint, no glass seizure risk.  SUS frame
    20L/F120 evaporating flask, 10L receiving flask.  PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.
    Electric Lifting bath, 5kw, 180℃ with +/-0.2℃ intelligent temp. control.  Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2005K2D)

    20L Rotary Evaporator with complete flange joint and bumping tube to protect reactant bumping into recieving flask, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.



    PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.  Manual lifting bath, 5kw, 180℃ with +/-0.2℃ intelligent temp. control.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2006K2D)

    Illustrations are for reference only.
    20L Rotary Evaporator  with complete flange joint, no glass seizure risk.  Bumping tube equipped. SUS frame.
    20L/F120 evaporating flask, 10L receiving flask. PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.
    Electric Lifting bath, 5kw, 180°C with +/-0.2°C intelligent temp. control. Digital rotation display. Frequency conversion rotation, speed 3-110rpm. Vacuum meter and vapor temperature measure port equipped.

  • Vacuum Controller(VC100C)

    Measure Range 0-105.0kPa, Resolution 0.1kPa, Set Range 2~90kPa,  digital vacuum rate display.
    PTFE electromagnetic valve & buffer bottle & filter bottle are equipped.






  • Water Circulation Vacuum Pump(SHB-3)

    2.6kPa, 2×10L/min, vacuum pressure adjustable, sus pump head, resist certain corrosion (fit for 1L-10L equipments)

  • Chemical Diaphragm Pump(601e)

    7.5Kpa (75mbar), 63L/min, Anti-corrosive.   Product dealt by SENCO.
