Rotary Evaporator  (R2005KD)
Pilot Production and Kilogram Lab use, Intelligent Temp. Control, Non-stop Operation Function, Oil Bath Heating,
Pdt. Code：R2005KD

20L Rotary Evaporator with complete flange joint, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.  PTFE charging &  discharging valve,



Patent technology on tandem type continuous receiving.  Manual lifting bath, 5kw, 180℃ with +/-0.2C intelligent temp. control.



Ultimate vacuum 133Pa (1 torr) with durable sealing performance.  Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Pdt. Name/Model: Rotary Evaporator(R2005KD)
  • Pdt. Code: R2005KD
  • Pdt. Features: Pilot Production and Kilogram Lab use, Intelligent Temp. Control, Non-stop Operation Function, Oil Bath Heating,



A rotary evaporator(or rotavap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The main function of our rotary evaporator is:



1. A motor unit that rotates the evaporation flask or vial containing the user's sample.

2. A vacuum system, to substantially reduce the pressure within the evaporator system.

3. A heated fluid bath (generally water) to heat the sample.

4. A condenser with a coil passing coolant.

5. A flask at the bottom of the condenser is to catch the distilling solvent.

6. A manual or electrical operation to adjust evaporation flask's position relative to the heating bath.

7. A Tandem Type Continuous Receiving Technology.



In Pilot Production Evaporating Field With Senco unique tandem receiving technology, Solvent Discharge no longer need to stop evaporation process, to release and re-pump system vacuum. The  echnology allows real continuous work without vacuum wave, which obviously increases productivity, simplifies system receiving structure and improves sealing performance. (for K series)






SPECIFICATIONS

1 Evaporating Flask (L) 20L/F120
2 Receiving Flask w/drain port (L) 10L/F40
3 Condensing Surface (m2) 1
4 Rotation Speed (rpm) 3-110
5 Evaporating Speed (H2O)** 5L/H
6 Reachable Vacuum Rate (Pa) <133Pa(1.33mbar,1Torr)
7 Bath Power (kW) 5/3.6(Ex or Oil)
8 Static Temp. Control Range & Wave (℃) 0-180±0.2
9 Bath Size (cm), Capacity, Material φ45x27H,40L,SUS304
10 Power 220V,1P,50/60Hz
11 Dimensions (cm) 110x65x190H

CONFIGURATIONS

1 Glass Connection Mirror Polished Flanges
2 Electric Bath Lift /
3 Tandem Type Continuous Receiving •
4 PTFE Rotary Seal Assembly •
5 Frequency Conversion Speed Control •
6 Charging Valve PTFE
7 PTFE Discharge Valve •
8 Vacuum Meter •
9 Throttle Valve for Vacuum •
10 Quick-change connector for Cooling Circulation •
11 Thermometer Neck for Vapor •
12 Digital Display Taper Temp., Rotation Speed
13 SUS Frame* /
14 big Evaporation Neck Upgrade* O F145
15 Bumping Prevention System* O
15 Cold Trap O
16 Evaporating Flask Unload Handler O
17 Steam Heating * O
18 Optional Evaporating Flask (baffles available at request) 5L,10L
19 Ex-proof Upgrade* O

Symbol Instruction: / - None,  ● - Equipped,  ○ - Optional ( * - Only available when ordering of product, not for separate sale)

Note: Some specifications of relevant or customized models have some differences from that of standard model, for details, please consult with us.

  • Rotary Evaporator(R2002D)

    20L Rotary Evaporator with 20L/F95 evaporating flask, 10L receiving flask with PTFE discharging valve.



    Lifting bath, 5kw, 180℃ with +/-0.2°C intelligent temp. control.  Digital rotation display.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Frequency conversion rotation, speed 3-110rpm.  Vacuum meter equipped.

  • Rotary Evaporator(R2006KB)

    Illustrations are for reference only.
    20L Rotary Evaporator with complete flange joint, no glass seizure risk.  SUS frame
    20L/F120 evaporating flask, 10L receiving flask.  PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.
    Electric Lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control.  Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2006KD)

    20L Rotary Evaporator with complete flange joint, no glass seizure risk.  SUS frame
    20L/F120 evaporating flask, 10L receiving flask.  PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.
    Electric Lifting bath, 5kw, 180℃ with +/-0.2℃ intelligent temp. control.  Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2005K2B)

    20L Rotary Evaporator with complete flange joint and bumping tube to protect reactant pumping into recieving flask, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.



    PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.  Manual lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2005K2D)

    20L Rotary Evaporator with complete flange joint and bumping tube to protect reactant bumping into recieving flask, no glass seizure risk. 20L/F120 evaporating flask, 10L receiving flask.



    PTFE charging &  discharging valve, Patent technology on tandem type continuous receiving.  Manual lifting bath, 5kw, 180℃ with +/-0.2℃ intelligent temp. control.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Digital rotation display.  Frequency conversion rotation, speed 3-110rpm.  Vacuum meter and vapor temperature measure port equipped.

  • Rotary Evaporator(R2002B)

    20L Rotary Evaporator with 20L/F95 evaporating flask, 10L receiving flask with PTFE discharging valve.



    Lifting bath, 5kw, 99℃ with +/-0.2℃ intelligent temp. control.  Digital rotation display.  Ultimate vacuum 133Pa (1 torr) with durable sealing performance.



    Frequency conversion rotation, speed 3-110rpm.  Vacuum meter equipped.

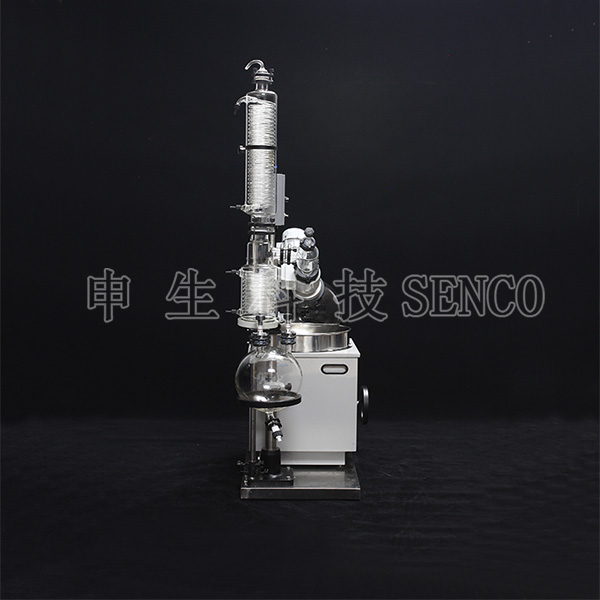

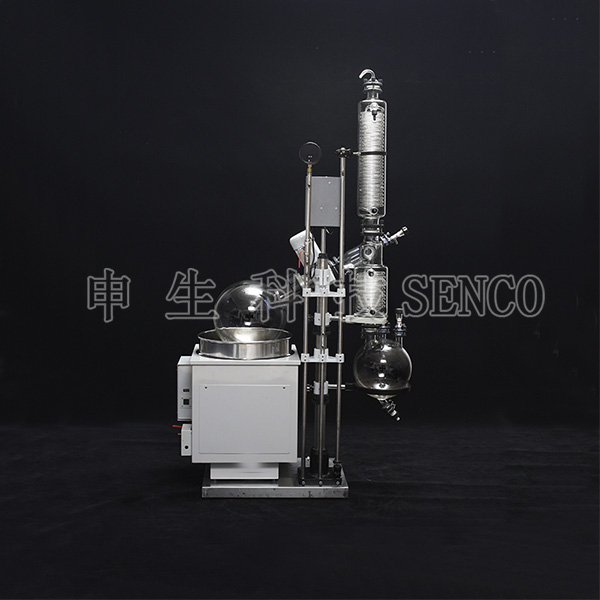

  • Rotary Evaporator(R2005KB)
